CNC Turning

CNC Turning

Our CNC Turning plant list includes:

  • 1 off DMG MORI NTX1000 Mill-Turn with robot loader (New 2021)
  • 1 off DMG MORI NLX2500 Mill-Turn with gantry loader(New 2023)
  • 1 off DMG MORI NTX1000 Mill-Turn with barfeed
  • 1 off Puma 2500 SY
  • 1 off Puma 2000Y
  • 1 off Puma 230M
  • 1 off Miyano BNJ 51 SY6 with barfeed
  • 1 off Miyano BND 51 S2
  • 1 off XYZ 425SLX (2m bed length)

For comprehensive machine capabilities please review the machine specifications detailed below;

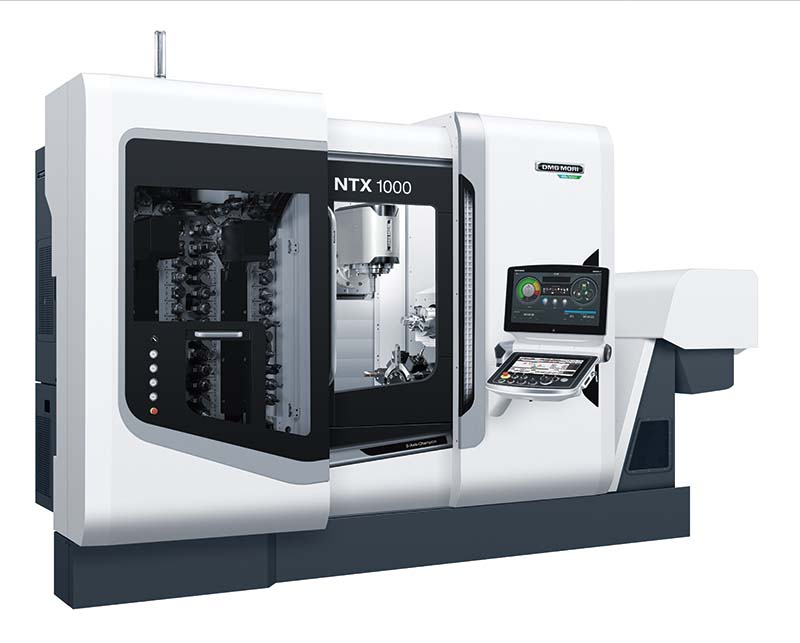

Machine           DMG MORI NTX1000 with robotic loader

Bar Capacity      63mm

Billet Capacity    250mm

Precision            +/- 0.005mm

Features           Twin Spindle, Twin Turret, Full 5 axis machining

                          84 Driven Tools

                          Y Axis machining

                          C Axis machining

                          Bar Feed

                          Robot loading for billets

                          Capable of 24hrs a day production.

   NTX1000Ge2_B020_5.jpg [original]

The installation of the above machine was completed through the "Advanced Manufacturing Project" which was part funded by the "European Agricultural Fund for Rural Development".  Full details at the bottom of the page.

 EAFRD_Logo.png [original]





Machine           DMG MORI NLX2500 SY with Gantry loader

Bar Capacity      63mm

Billet Capacity    250mm

Precision            +/- 0.005mm

Features           Twin Spindle, Twin Turret,

                          12 Driven Tools

                          Y Axis machining

                          C Axis machining

                          Gantry for loading billets

                          Capable of 24hrs a day production.







Machine           DMG MORI NLX1500 SY with Gantry loader

Bar Capacity      52mm

Billet Capacity    200mm

Precision            +/- 0.005mm

Features           Twin Spindle, Twin Turret,

                          12 Driven Tools

                          Y Axis machining

                          C Axis machining

                          Barfeed unit

                          Capable of 24hrs a day production.







Machine           Puma 2500 SY

Bar Capacity      76mm

Billet Capacity    250mm

Precision            +/- 0.01mm

Features           Twin Spindle

                          Driven Tooling

                          Y Axis machining

                          C Axis machining

                          Bar Feed Enabled



 Puma_2500SY.jpg [original]



Machine           Puma 2000Y

Bar Capacity     63mm

Billet Capacity   250mm

Precision           +/- 0.01mm

Features            Single Spindle

                          Driven Tooling

                          Y Axis machining

                          C Axis machining

                          Bar Feed Enabled

Puma_2000Y.jpg [original]

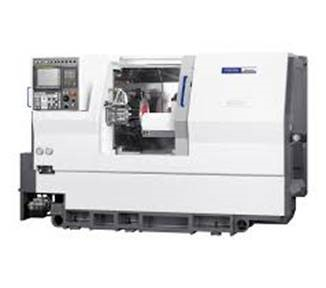

Machine            Miyano BNJ51SY6

Bar Capacity     51mm

Billet Capacity   150mm

Precision           +/- 0.005mm

Features            Twin Spindle

                          Twin Turret

                          Driven Tooling, (both turrets)

                          Axis machining

                          C Axis machining

                          Bar Feed Enabled

 Miyano_BNJ51SY6.jpg [original]



Machine            Miyano BND51S2

Bar Capacity     51mm

Billet Capacity   150mm

Precision           +/- 0.01mm

Features            Twin Spindle

                         Driven Tooling

                         C Axis machining

                         Bar Feed Enabled

Miyano_BND_42-51.jpg [original]



Machine           Puma 230M

Bar Capacity     63.5mm

Billet Capacity  200mm

Precision         +/- 0.01mm

Features          Driven Tooling

                        C Axis machining

                        Bar Feed Enabled





Machine            XYZ 425SLX (2metre)

Bar Capacity    76mm

Billet Capacity  300mm

Precision          +/- 0.01mm

Features           Conversational Programming











Apsley Precision Engineering: Advanced Manufacturing Project:

This investment has enabled Apsley to procure the latest CNC multi-axis automated mill-turn technology, with robotic loading, automated inspection and the ability to run 24 hours a day. The technology will be new to our business, and will be the only machine of its type in Wiltshire. The machinery in question allows the completion of both turning and milling operations in a single process, increasing the complexity and range of components Apsley can manufacture with significant improvements in productivity.

Investment in the latest technology will increase the number of highly skilled engineers Apsley employ to support the manufacturing process from the programming and management of the machine, through to machining, procurement of materials and services, planning, inspection, operations management and sales activities.

This project is part funded by the European Agricultural Fund for Rural Development
